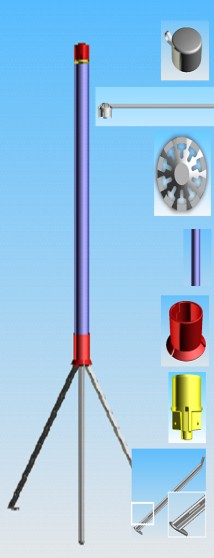

Cap: The cap covers the arms whilst in the closed position.
Arm: Ten ‘T’ shaped moulded drying arms.
Top: Consists of 10 ‘T’ shaped slots, these guide the arms from the support tube and are also part of the retention system.
Support Tube: Produced from Colour Fast UPVC, with a 3mm wall thickness to provide strength.
Locking Ring: The three external clip features hold the legs in place when the Easy Store is not being used. The Internal slot system enables the legs to be held in a locked position when opened and in use by rotating onto two locking pins moulded into the base.
Base: When opened the base is the pivotal support for the airer by ensuring that the three legs are always opened to the correct position. This is achieved by means of a positive stop position incorporated into the
Leg: When opened the legs are located against the positive stop on the base to ensure correct position every time. In the closed position the groove moulded into the leg allows for each leg to be clipped into the locking ring. To provide additional strength the legs have been designed utilising a ‘T’ shaped section with an inward facing flat foot for additional stability.
