Subject Topic: RM123 fridge internal electrics?
Post Reply
Personjpcoetzee
06/11/2021 at 9:30pm
 Location: Bristol UK
 Outfit: VW Auto-Sleeper Topaz 2000 View jpcoetzee's Profile View Profile   Reply to jpcoetzee Reply   Quote jpcoetzee Quote
Joined: 11/7/2006

Standard Member
Standard Member

Forum Posts:   7
Site Reviews Total: 0
Site Reviews 2026: 0
Site Reviews 2025: 0
Site Reviews 2024: 0
Site Reviews 2023: 0
Site Reviews 2022: 0
Site Reviews 2021: 0
Site Reviews 2020: 0
Site Nights 2026: 0
Site Nights 2025: 0
Site Nights 2024: 0
Site Nights 2023: 0
Site Nights 2022: 0
Site Nights 2021: 0
Site Nights 2020: 0
Does anyone have a diagram for the internal electrics of an Electrolux/Dometic RM123 firdge?

I'm trying to fix a problem with 12V operation when the engine is running.

thanks


Persontango55
06/11/2021 at 10:05pm
 Location: Lichfield
 Outfit: Coachman Vision 450 View tango55's Profile View Profile   Reply to tango55 Reply   Quote tango55 Quote
Joined: 15/5/2008

Diamond Member
Diamond Member

Forum Posts:   9593
Site Reviews Total: 23
Site Reviews 2026: 0
Site Reviews 2025: 0
Site Reviews 2024: 0
Site Reviews 2023: 0
Site Reviews 2022: 3
Site Reviews 2021: 1
Site Reviews 2020: 0
Site Nights 2026: 0
Site Nights 2025: 0
Site Nights 2024: 0
Site Nights 2023: 0
Site Nights 2022: 11
Site Nights 2021: 3
Site Nights 2020: 0
If you have no success in getting a wiring diagram you may find that this handbook could be useful. It contains information regarding maintenance and repairs on habitation elements, explanations of construction methods, practical advice concerning appliances, and detailed descriptions of motorcaravan supply systems.


Here


Personcliffbrown
07/11/2021 at 7:41am
 Location: chesterfield
 Outfit: Lunar Clubman SI View cliffbrown's Profile View Profile   Reply to cliffbrown Reply   Quote cliffbrown Quote
Joined: 02/7/2006

Diamond Member
Diamond Member

Forum Posts:   1602
Site Reviews Total: 6
Site Reviews 2026: 0
Site Reviews 2025: 0
Site Reviews 2024: 0
Site Reviews 2023: 0
Site Reviews 2022: 0
Site Reviews 2021: 0
Site Reviews 2020: 0
Site Nights 2026: 0
Site Nights 2025: 0
Site Nights 2024: 0
Site Nights 2023: 0
Site Nights 2022: 0
Site Nights 2021: 0
Site Nights 2020: 0
I have access to the Electrolux website I could get it for you but all there info is in pdf format so I cant post it as a picture I would have to email it.
there is a 9 digit product number on the rating plate sometimes with a 2 digit after it I would need that to get the exact model


Personjpcoetzee
07/11/2021 at 10:12pm
 Location: Bristol UK
 Outfit: VW Auto-Sleeper Topaz 2000 View jpcoetzee's Profile View Profile   Reply to jpcoetzee Reply   Quote jpcoetzee Quote
Joined: 11/7/2006

Standard Member
Standard Member

Forum Posts:   7
Site Reviews Total: 0
Site Reviews 2026: 0
Site Reviews 2025: 0
Site Reviews 2024: 0
Site Reviews 2023: 0
Site Reviews 2022: 0
Site Reviews 2021: 0
Site Reviews 2020: 0
Site Nights 2026: 0
Site Nights 2025: 0
Site Nights 2024: 0
Site Nights 2023: 0
Site Nights 2022: 0
Site Nights 2021: 0
Site Nights 2020: 0

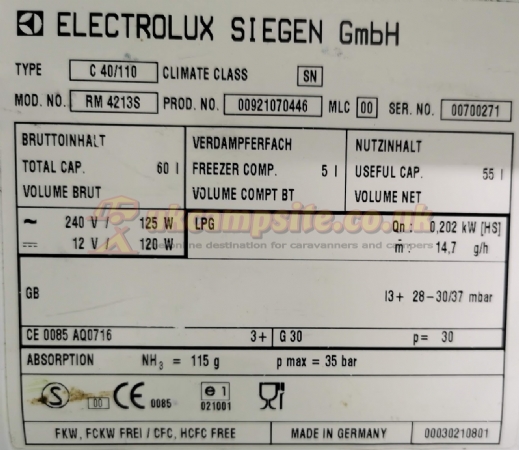

Rating plate (sticker) is below. It's an RM4213, not a 123. I never knew that!

Mod No: RM4213S Prod No: 00921070446



Post last edited on 07/11/2021 22:19:39


Personmarg6
08/11/2021 at 12:54am
 Location:
 Outfit:  View marg6's Profile View Profile   Reply to marg6 Reply   Quote marg6 Quote
Joined: 11/8/2016

Diamond Member
Diamond Member

Forum Posts:   3239
Site Reviews Total: 3
Site Reviews 2026: 0
Site Reviews 2025: 0
Site Reviews 2024: 0
Site Reviews 2023: 0
Site Reviews 2022: 0
Site Reviews 2021: 0
Site Reviews 2020: 0
Site Nights 2026: 0
Site Nights 2025: 0
Site Nights 2024: 0
Site Nights 2023: 0
Site Nights 2022: 0
Site Nights 2021: 0
Site Nights 2020: 0
maybe we could help if you told us he problem your trying to fix with a bit more detail?


Advertisement



Personcliffbrown
via mobile 08/11/2021 at 1:40pm
 Location: chesterfield
 Outfit: Lunar Clubman SI View cliffbrown's Profile View Profile   Reply to cliffbrown Reply   Quote cliffbrown Quote
Joined: 02/7/2006

Diamond Member
Diamond Member

Forum Posts:   1602
Site Reviews Total: 6
Site Reviews 2026: 0
Site Reviews 2025: 0
Site Reviews 2024: 0
Site Reviews 2023: 0
Site Reviews 2022: 0
Site Reviews 2021: 0
Site Reviews 2020: 0
Site Nights 2026: 0
Site Nights 2025: 0
Site Nights 2024: 0
Site Nights 2023: 0
Site Nights 2022: 0
Site Nights 2021: 0
Site Nights 2020: 0



PersonFiona W
via mobile 08/11/2021 at 4:52pm
 Location: Ayrshire
 Outfit: A2DS+Nuevo View Fiona W's Profile View Profile   Reply to Fiona W Reply   Quote Fiona W Quote
Joined: 10/4/2007

Diamond Member
Diamond Member

Forum Posts:   5833
Tent Reviews:   1
Site Reviews Total: 260
Site Reviews 2026: 14
Site Reviews 2025: 12
Site Reviews 2024: 19
Site Reviews 2023: 8
Site Reviews 2022: 12
Site Reviews 2021: 10
Site Reviews 2020: 4
Site Nights 2026: 33
Site Nights 2025: 25
Site Nights 2024: 39
Site Nights 2023: 25
Site Nights 2022: 32
Site Nights 2021: 25
Site Nights 2020: 20
Let’s hope the OP has electrical experience, judging by that diagram.

-------------
2026: 14 sites / 33 nights. 2025: 13/27. 2024: 20/41. 2023: 9/23. 2022: 13/35. 2021: 11/29. 2020: 4/20. 2019: 13/35. 2018: 20/33. 2017: 10/22. 2016: 19/33. 2015: 15/27. Didn't count sites/nights 1985 to 2014.


Personjpcoetzee
08/11/2021 at 5:40pm
 Location: Bristol UK
 Outfit: VW Auto-Sleeper Topaz 2000 View jpcoetzee's Profile View Profile   Reply to jpcoetzee Reply   Quote jpcoetzee Quote
Joined: 11/7/2006

Standard Member
Standard Member

Forum Posts:   7
Site Reviews Total: 0
Site Reviews 2026: 0
Site Reviews 2025: 0
Site Reviews 2024: 0
Site Reviews 2023: 0
Site Reviews 2022: 0
Site Reviews 2021: 0
Site Reviews 2020: 0
Site Nights 2026: 0
Site Nights 2025: 0
Site Nights 2024: 0
Site Nights 2023: 0
Site Nights 2022: 0
Site Nights 2021: 0
Site Nights 2020: 0
Thanks for that, very useful! A couple of questions.

1. Does the rectangle top left say "Heater element battery"?

2. Does the second vertical wire on the left say "weiß [doesn't exist by unlighted switches]"?

Quote: Originally posted by marg6 on 08/11/2021
maybe we could help if you told us he problem your trying to fix with a bit more detail?

With the engine running, when the switch marked "SWITCH BATTERY" above is in the off position, there is 12V on terminal 1.

When the switch is on, the voltage on terminal 1 drops to zero but the light in the switch doesn't come on.

Now I've got the diagram I can see where to probe a bit more. I suspect it's either a broken switch or a bad connection. The van is 21 years old so both are quite likely.

Quote: Originally posted by Fiona W on 08/11/2021
Let’s hope the OP has electrical experience, judging by that diagram.

Heh, I do have some. I don't find the diagram confusing at all, but then I'm very familiar with circuit diagrams!

thanks all


Personjpcoetzee
12/12/2021 at 12:10pm
 Location: Bristol UK
 Outfit: VW Auto-Sleeper Topaz 2000 View jpcoetzee's Profile View Profile   Reply to jpcoetzee Reply   Quote jpcoetzee Quote
Joined: 11/7/2006

Standard Member
Standard Member

Forum Posts:   7
Site Reviews Total: 0
Site Reviews 2026: 0
Site Reviews 2025: 0
Site Reviews 2024: 0
Site Reviews 2023: 0
Site Reviews 2022: 0
Site Reviews 2021: 0
Site Reviews 2020: 0
Site Nights 2026: 0
Site Nights 2025: 0
Site Nights 2024: 0
Site Nights 2023: 0
Site Nights 2022: 0
Site Nights 2021: 0
Site Nights 2020: 0
Changing the switch seems to have fixed this, maybe it was an intermittent bad connection.


Personcliffbrown
via mobile 12/12/2021 at 3:09pm
 Location: chesterfield
 Outfit: Lunar Clubman SI View cliffbrown's Profile View Profile   Reply to cliffbrown Reply   Quote cliffbrown Quote
Joined: 02/7/2006

Diamond Member
Diamond Member

Forum Posts:   1602
Site Reviews Total: 6
Site Reviews 2026: 0
Site Reviews 2025: 0
Site Reviews 2024: 0
Site Reviews 2023: 0
Site Reviews 2022: 0
Site Reviews 2021: 0
Site Reviews 2020: 0
Site Nights 2026: 0
Site Nights 2025: 0
Site Nights 2024: 0
Site Nights 2023: 0
Site Nights 2022: 0
Site Nights 2021: 0
Site Nights 2020: 0
Glad you got it sorted 😀
